Document DHCP Server Configuration

(Available from XIA Configuration version 4.2)

XIA Configuration automatically documents your Microsoft DHCP Server configuration, gathering information about the DHCP server itself as well as classes, scopes, reservations and exclusions. The Agent supports both IPv4 and IPv6.

All of XIA Configuration's features are supported when documenting DHCP server configuration, including version control, production of PDF reports, change tracking, and XML output.





Supported Operating Systems
  • Windows Server 2012 R2
  • Windows Server 2012
  • Windows Server 2008 R2
  • Windows Server 2008
  • Windows Server 2003 R2
  • Windows Server 2003
  • Windows 2000 Server

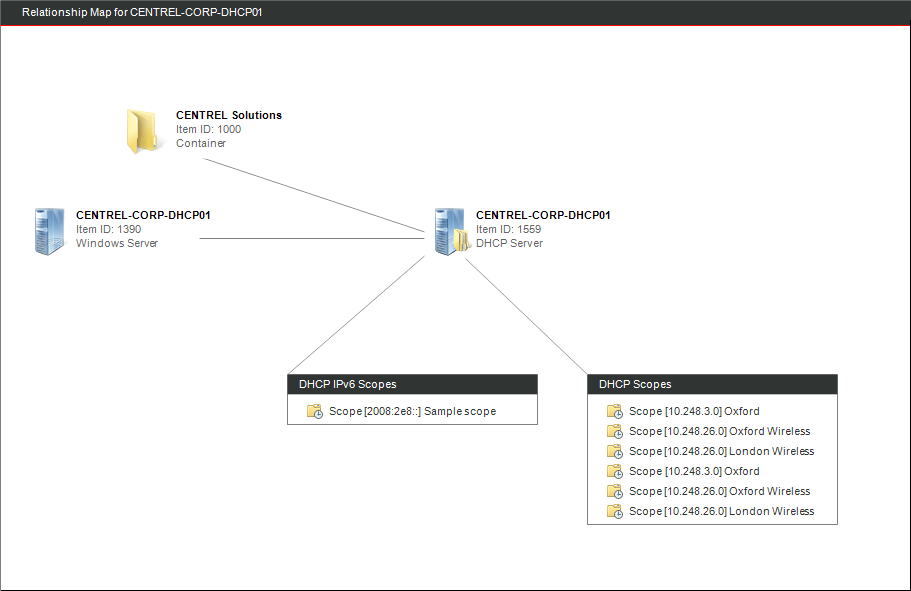

DHCP Relationship Mapping


XIA Configuration can automatically detect DHCP Server relationships including the host machine and IPv4 and IPv6 scopes.




DHCP Server Configuration
  • Audit Enabled
  • Audit Log Directory
  • IPv4 Bindings
  • IPv6 Bindings
  • Conflict Detection Attempts
  • Database Directory
  • Backup Directory
  • DDNS Credentials
  • NAP Quarantine Enabled (Windows 2008 and above)
  • NAP Unavailable Action
  • Superscopes
  • Server Options
  • User and Vendor Classes

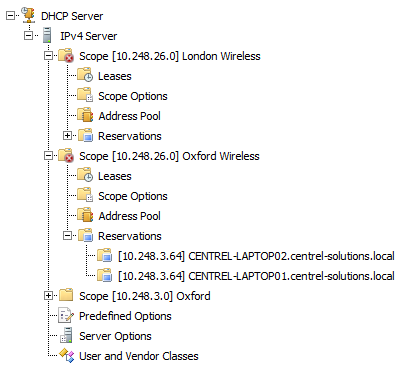

IPv4 Scopes

  • Name
  • Description
  • Exclusions
  • Reservations
  • Lease Duration
  • BOOTP Lease Duration
  • Start Address
  • End Address
  • Subnet Mask
  • State
  • DDNS Settings
  • Leases
  • Scope Options

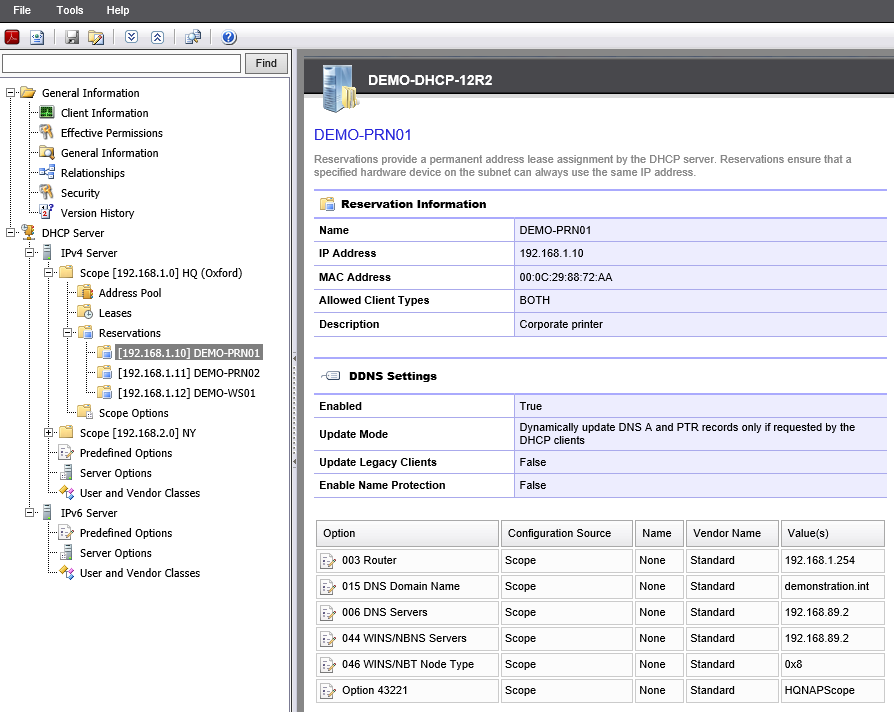

Reservations

  • Name
  • IP Address
  • MAC address
  • DDNS Settings
  • Reservation Options (effective options)




IPv6 Scopes
  • Name
  • Description
  • Address
  • State
  • Preference
  • DDNS Settings
  • Exclusions
  • Reservations
  • Scope Options

Track DHCP Server Configuration Changes

The DHCP server agent is to be able to track configuration changes made to the DHCP server or compare multiple DHCP servers for discrepancies.
In the screenshot below a DHCP server has been reconfigured at the server option level

  • The 003 Router option has been added
  • The 006 DNS Servers option has been changed with a new DNS server IP address
