Hyper-V Documentation Tool

Automated documentation software to help you keep track of your Hyper-V environments

Use our Hyper-V documentation tool XIA Configuration to automatically document your Hyper-V servers. Record the configuration of your Hyper-V environments, easily troubleshoot issues, and audit your virtual machines e.g. find old operating systems that need to be upgraded.

XIA Configuration can also be used to document Windows and Unix virtual machines running in Hyper-V.

XIA Configuration has a non-intrusive architecture with agentless data collection.

  Watch Demo Video

Hyper-V Documentation Example

View an example Hyper-V document generated by XIA Configuration:

Hyper-V documentation example generated by XIA Configuration
Hyper-V documentation example generated by XIA Configuration
  Open Example Document

Watch our Hyper-V documentation software in action

This video shows the inventory, reporting and document generation features of XIA Configuration:

A video showing our Hyper-V inventory tool XIA Configuration

  View All Tutorials

Information documented by XIA Configuration

Find out more about the Hyper-V settings documented by XIA Configuration below:

XIA Configuration screenshot showing Hyper-V host configuration on desktop and mobile
XIA Configuration screenshot showing Hyper-V host configuration on desktop and mobile

Supported Platforms

Windows Server

  • Windows Server 2019
  • Windows Server 2016
  • Windows Server 2012 and 2012 R2
  • Windows Server 2008 R2

Hyper-V Server

  • Hyper-V Server 2016
  • Hyper-V Server 2012 and 2012 R2
  • Hyper-V Server 2008 R2

Host Configuration

XIA Configuration supports the Hyper-V server role and bare-metal hypervisors. This section includes information such as:

  • Operating System
  • Serial Number
  • Default Virtual Hard Disk Path
  • Default Virtual Machine Path
  • Enhanced Session Mode
  • Physical GPUs
  • Live Migration
  • Storage Migration

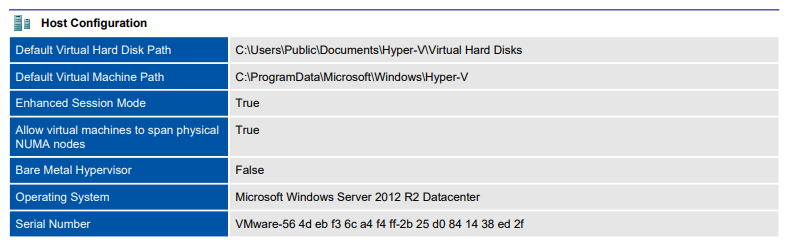

Screenshot showing Hyper-V host settings in a document generated by XIA Configuration
Screenshot showing Hyper-V host settings in a document generated by XIA Configuration

Replication Settings

This section includes information on replication settings such as:

  • Authentication settings
  • Certificate details
  • Authorized Replication Servers
  • Storage Locations
  • Trust Groups

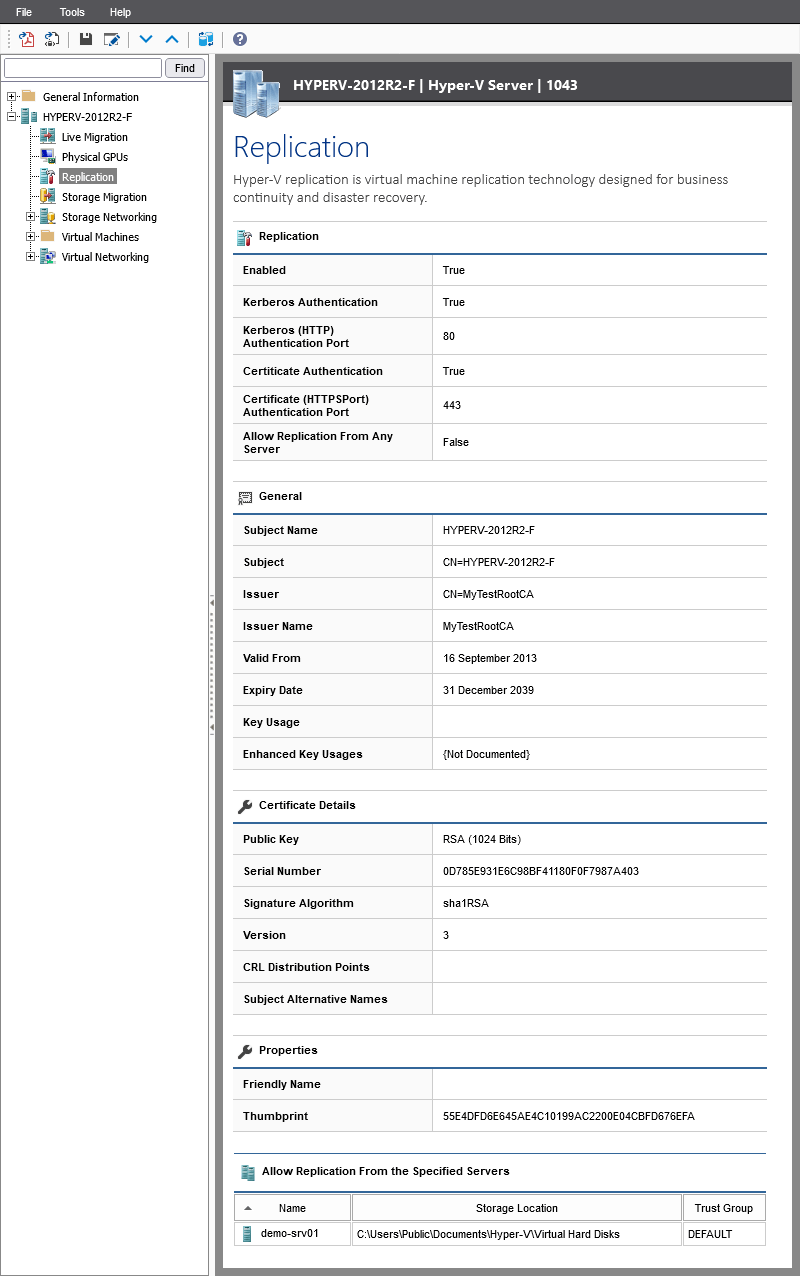

Screenshot showing Hyper-V replication settings in the XIA Configuration web interface
Screenshot showing Hyper-V replication settings in the XIA Configuration web interface

Virtual Machines

This section includes information on virtual machine configuration such as:

Note: Support is provided for both generation 1 and generation 2 virtual machines.

For detailed information about Windows servers, view the Windows Server page >
  • General Settings
  • Generation
  • Snapshots
  • Guest Information
  • Integration Services
  • BIOS / Firmware Settings
  • Enable Secure Boot (Generation 2 Virtual Machines)
  • Memory Settings
  • Processor Settings

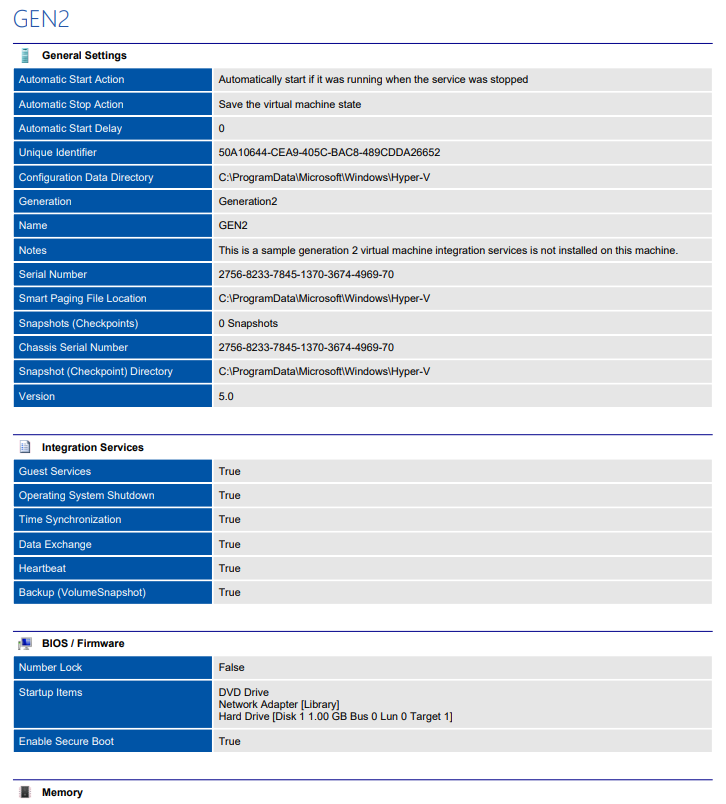

Screenshot showing Hyper-V virtual machine settings in a document generated by XIA Configuration
Screenshot showing Hyper-V virtual machine settings in a document generated by XIA Configuration

Virtual Hard Drives

This section includes information on hard drive configuration such as:

  • Format
  • Type
  • Size
  • Maximum Size
  • File Path
Screenshot showing Hyper-V virtual machine hard drive settings in the XIA Configuration web interface
Screenshot showing Hyper-V virtual machine hard drive settings in the XIA Configuration web interface

Virtual Network Adapters

This section includes information on network adapter configuration such as:

  • Connection
  • VLAN
  • Bandwidth Management
  • Advanced Features
  • Hardware Acceleration
Screenshot showing Hyper-V virtual machine network adapter settings in the XIA Configuration web interface
Screenshot showing Hyper-V virtual machine network adapter settings in the XIA Configuration web interface

Virtual Networking

This section includes information on virtual networking configuration such as:

  • MAC address ranges
  • Virtual Switches
  • Switch Type
  • VLAN Settings
  • External Adapter Name
  • Connected Virtual Machines
  • Extensions (Windows Server 2012 and above)

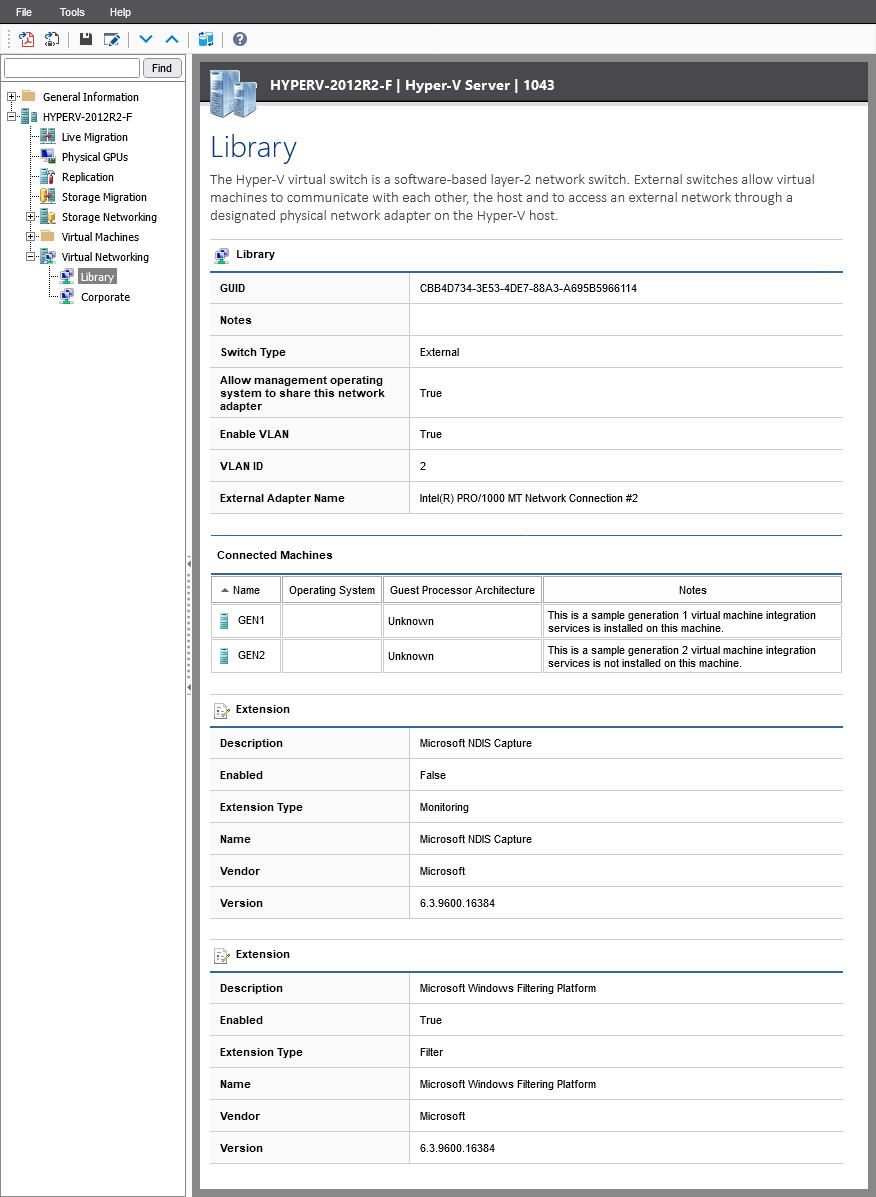

Screenshot showing Hyper-V virtual networking settings in the XIA Configuration web interface
Screenshot showing Hyper-V virtual networking settings in the XIA Configuration web interface

Inventory

Automatically detect and scan Hyper-V server installations on Windows machines which, in turn, are automatically detected when scanning Active Directory. Virtual machines connected to the domain will also be detected, scanned and added to the inventory.

Learn more Screenshot of Active Directory search and detection settings in the XIA Configuration Client
Screenshot of Active Directory search and detection settings in the XIA Configuration Client
Hyper-V servers can also be scanned manually by specifying a list of machine names or IP addresses.

Relationship Map

XIA Configuration automatically generates a map showing the relationships between servers, virtual switches, virtual machines and other items:

Hyper-V relationship map
Hyper-V relationship map

Reporting

In addition to generating full Hyper-V server documentation, you can run reports across multiple servers and virtual machines to check compliance and help both IT and business users get the information they need.

The reports are web-accessible and include filtering, sorting and exporting to CSV and PDF.

Learn more Screenshot showing the Hyper-V hosts summary report in the XIA Configuration web interface
Screenshot showing the Hyper-V hosts summary report in the XIA Configuration web interface

Track Changes and Compare Servers

The following report shows the changes detected on a Hyper-V server where the details and replication settings of the host have been changed and the start action, startup items, time synchonization and memory have been changed on the virtual machine "GEN2".

Find out more about the item comparison feature >

  View Comparison Report Screenshot showing the item comparison feature in the XIA Configuration web interface
Screenshot showing the item comparison feature in the XIA Configuration web interface

Try our Hyper-V documentation tool for free

No commitments. No costs. Try XIA Configuration today.

  Download Free 30-Day Trial

View all the systems documented by XIA Configuration >
